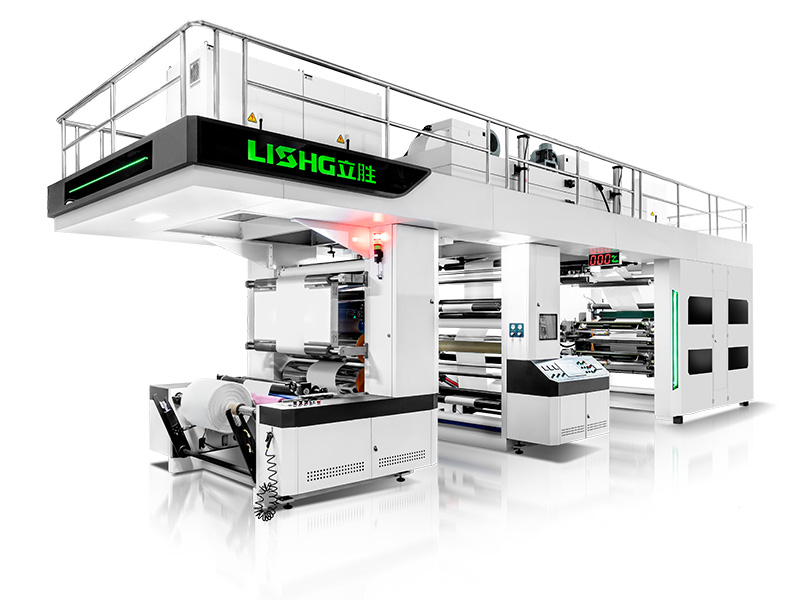

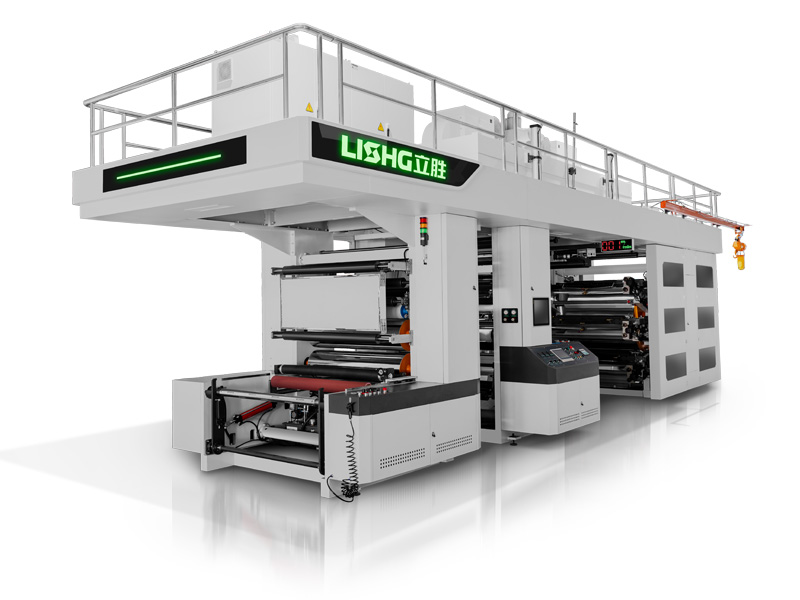

Engine and Web Operation:
- The engine uses high-strength alloy cast iron with low vibration, resin sand casting, and vibration aging treatment.
- Integrated guide roller structure.
- Layered design construction.
- Engine thickness: 100mm.
- Guide roller diameter: φ100mm (anodized surface treatment).
Main Parameters:
| Item | YTD-4 6 8 Color |
|---|---|
| Feeding Width | 600mm, 800mm, 1000mm, 1200mm, 1400mm |
| Max Printing Area | 560mm, 760mm, 960mm, 1160mm, 1360mm |
| Design | 4 6 8 colors |
| Materials | PE, PET, BOPP, PVC, membrane, non-woven fabric, breathable film |
| Plate Thickness | 1.14mm, 1.7mm, 2.28mm, 2.84mm, 3.94mm (customizable) |
| Printing Theme | Standard: 400mm, customizable 380-800mm |
| Max Printing Speed | 250m/min |
| Registration Accuracy | Longitudinal: ±0.15mm, Lateral: ±0.15mm |
| Structure Type | Central impression (central drum) |
| Gear Model | 1.5mm |
| Heating Method | Electric heating |
| Max Oven Temperature | Max 80℃ (ambient temp 20℃) |
| Unwinder/Rewinder Core | Core 3″ |
| Max Unwinder/Rewinder Diameter | 1000mm |
| Applicable Ink | Solvent-based ink |
